Description

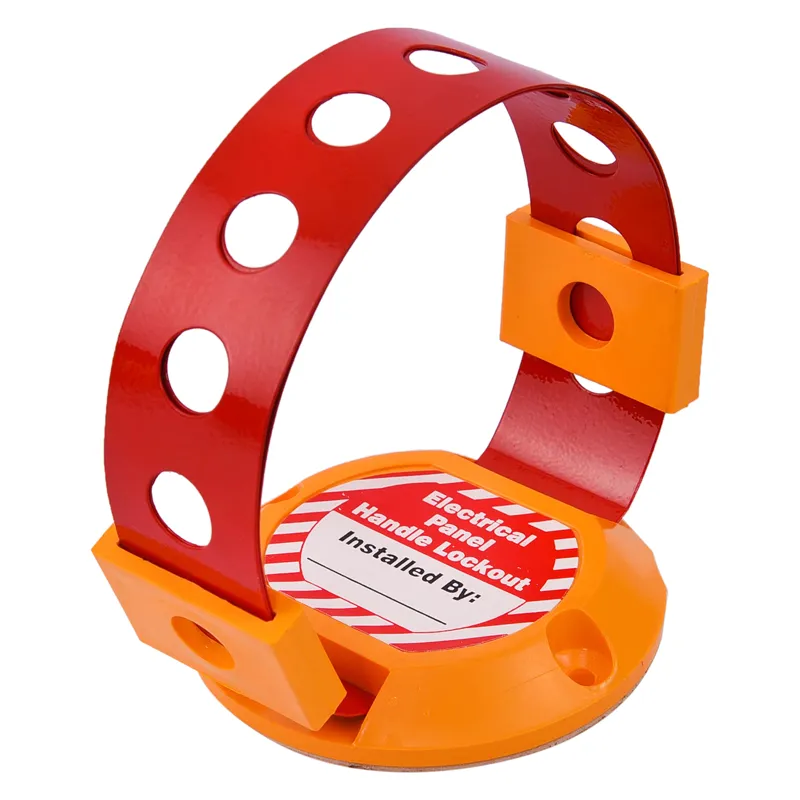

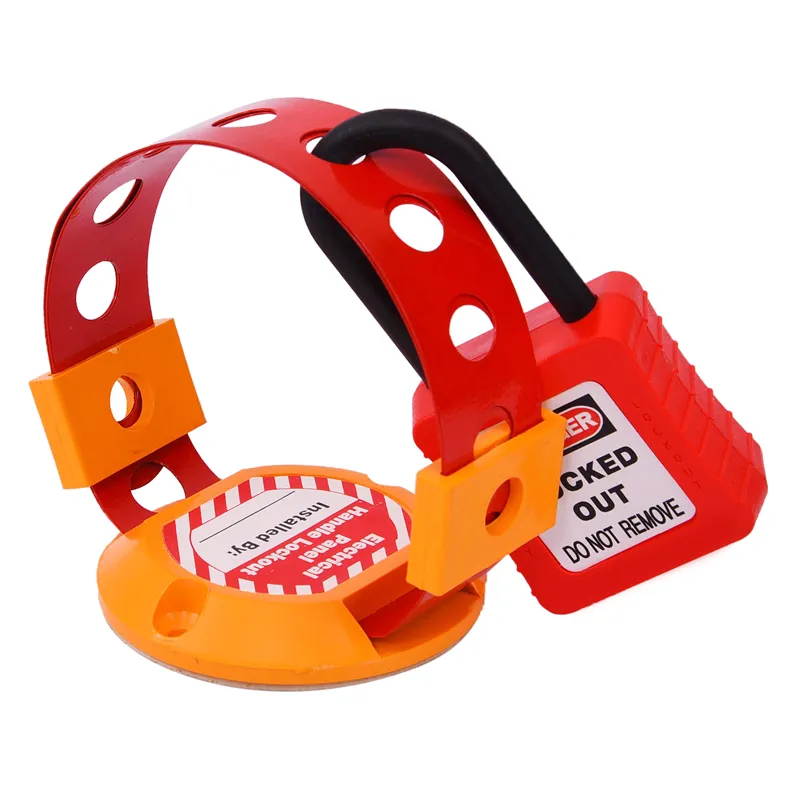

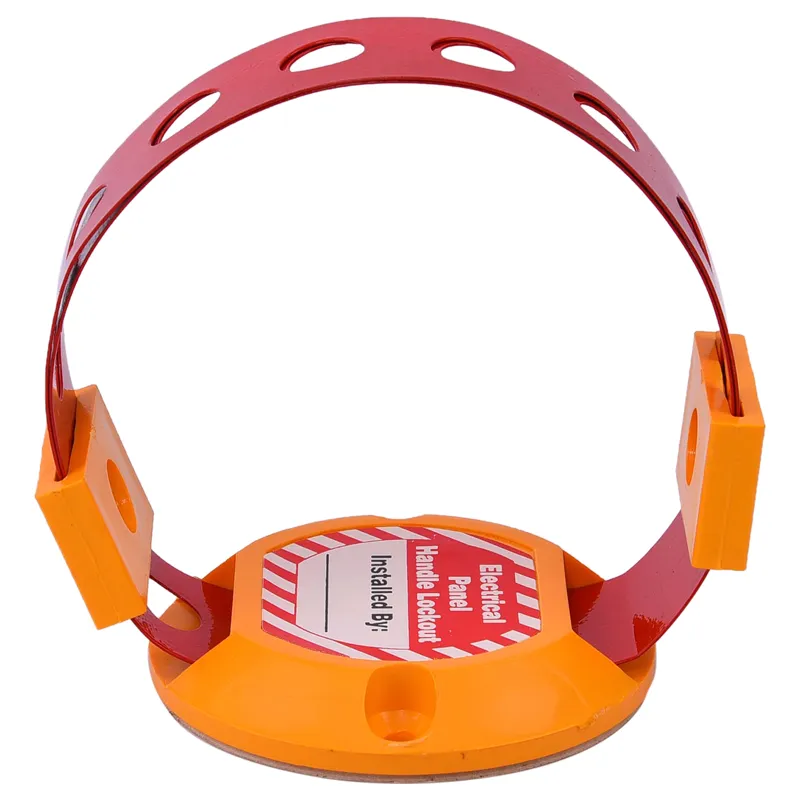

Electrical Handle Lockout
- This lockout has a special design that helps lock large handles on electrical panels.
- It is made from strong ABS plastic, so it lasts even in tough conditions.
- It comes with a flexible stainless steel strip that has a protective coating.
- The strip has 20 holes, making it easy to adjust and lock in different positions.
- This lockout holds the handle and levers in place.

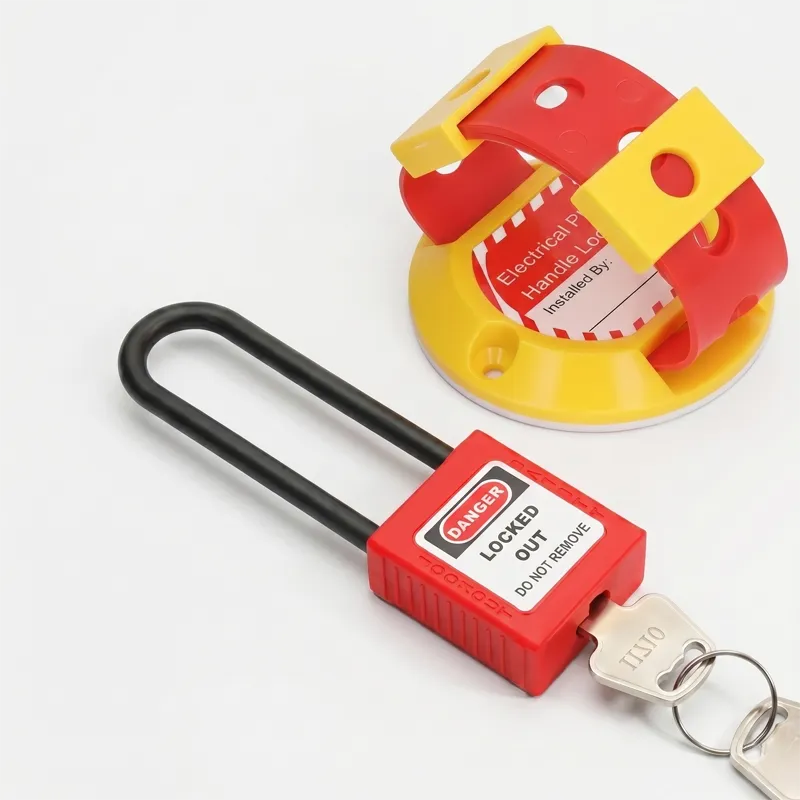

- It does not have a built-in lock, so a separate padlock is used.
- Capable of working on large brake handles and levers for versatile equipment.
- There are multiple holes on the lock’s strip for customized locking or group isolation.

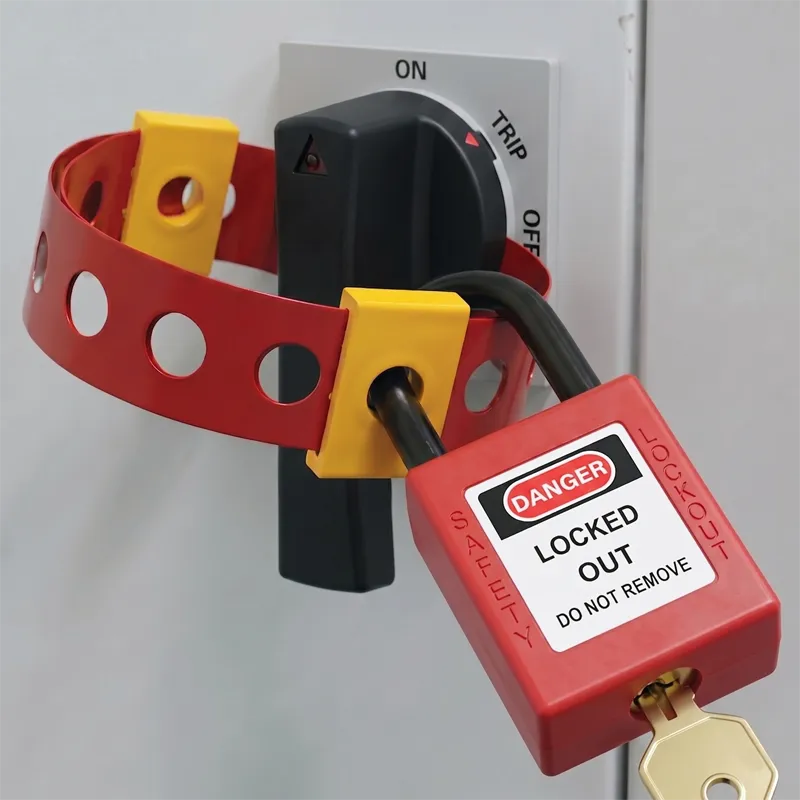

- The two clamps on the lock secure the strip around the handle to immobilize the electrical panel.
- It accepts the standard lockout padlocks up to 9 mm.
- The durable and secure build offers long-lasting performance to enhance safety during the repair or maintenance of the electrical panels.
- Comply with the lockout/tagout (LOTO) safety regulations, and provide a physical barrier to dangerous energy for workers’ safety.
- Easy to install, non-conductive, and protects workers while working near electrical panels.
| Key Characteristics | ||
| Product Number | ||
| Trade Name | Electrical Handle Lockout | |
| Brand Name | KLH | |

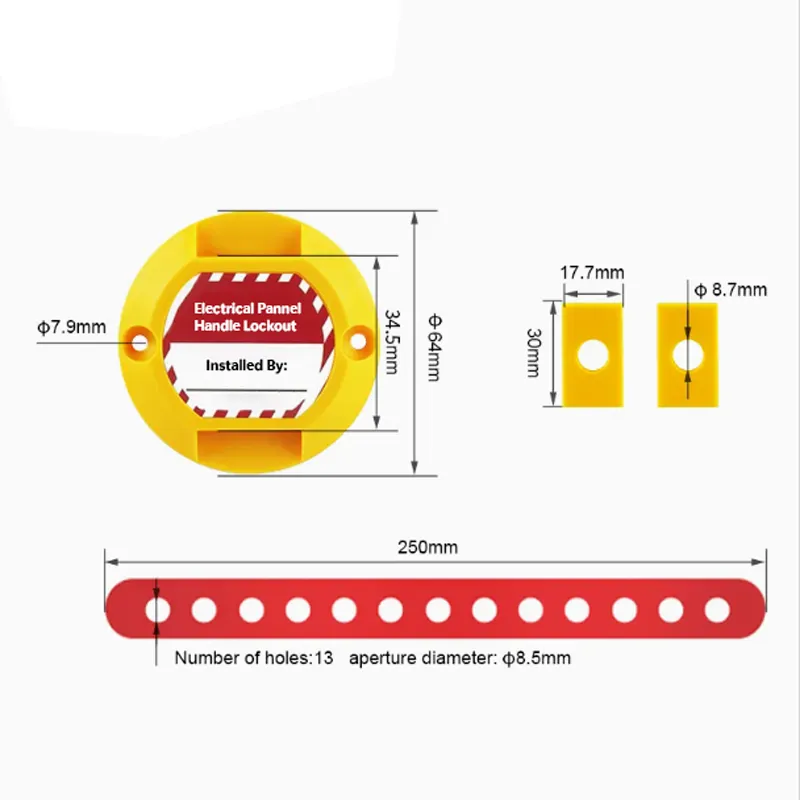

| Dimensions(Clock Dial) | ||
| Dimensions | 1.4 in D x 0.3 in W x 2.5 in D | |
| Outer dia. | 2.5 in | |
| Width | 0.3 in | |
| Inner dia. | 1.4 in | |
| Dimensions(Strap) | ||
| Length | 14 in | |
| Hole | 0.3 in | |
| Material Characteristics | ||
| Material | Polypropylene | |
| Adhesive Type | Permanent Acrylic | |
| Color | Yellow & Black | |
| Service Temperature Range °F | -4 °F – 248 °F | |
| Product Features | ||
| Application | Lockout Tagout | |
| No. of clips | 2 | |
| Type | Non-Conductive | |
| Product Number: | |
| Trade Name: | Electrical Handle Lockout |
| Brand Name: | KLH |
| Body Size: | 6.25 in H × 3.47 in Dia |
| Height: | 6.25 in |
| Diameter: | 3.47 in |
| Lockout Material: | Polypropylene |
| Color: | Red & Yellow |
| Service Temperature Range (°F): | -4 °F to 176 °F |
| Compatibility (1.7 in) | |
| Maximum Shackle Diameter: | 0.37 in |
| Maximum Cord Diameter: | 1.25 in |
| Maximum Plug Size: | 5.5 in L × 3 in Dia |
| Maximum Plug Length: | 5.5 in |
| Maximum Plug Diameter: | 3 in |
