Electrical Panel Hole Lockout(Rack Cover)

Description

Electrical Panel Hole Lockout(Rack Cover)

• This lockout is made of durable ABS plastic that can handle tough conditions.
• It’s used to block the switches or holes on electrical panels.
• The lock has a circular design with one upper and lower part and a central opening to fit the breaker handle.
• It stops people and workers from turning switches ON or OFF mistakenly.
• The lock includes a padlock so that no one can open it without permission.
• It has three holes at the bottom for securing it with screws or rivets.

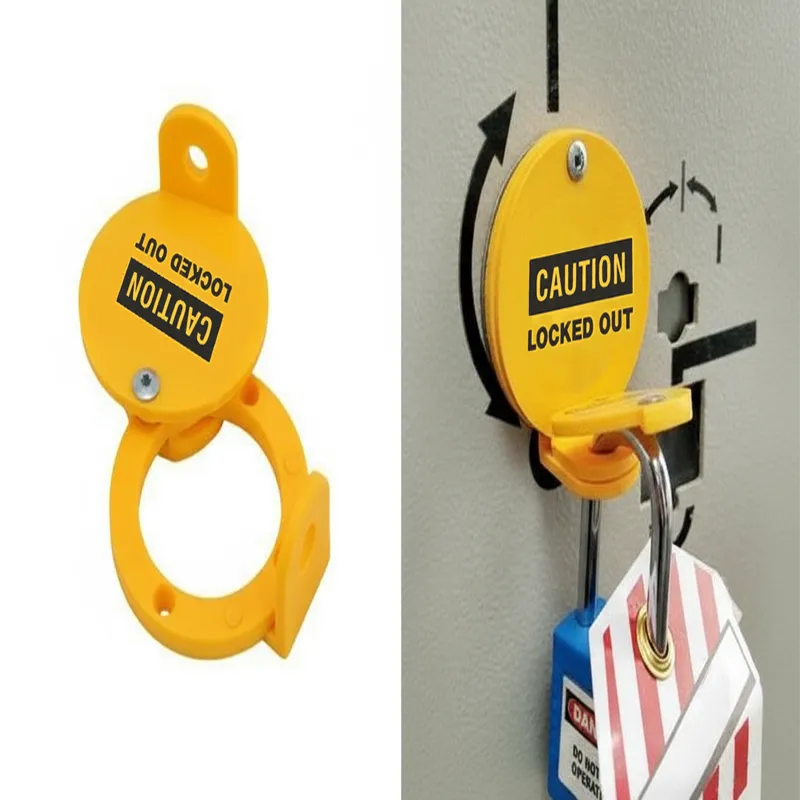

• The padlock is inserted through the holes in the lockout, and the breaker or switch prevents the movement.
• It can be easily secured with double-sided tape to the panel.
• The electric panel hole lockout can also be used to lock switches that are set deep inside a flat surface so that they can’t be turned ON or OFF easily.
• Ideal for protecting workers during equipment handling and maintenance.

• Lockout device is made of ABS material and is attached with a rivet for secure installation.

• This round-shaped lockout device is designed to lock the racking in-out point of air circuit breakers, vacuumed circuit breakers, and other similar devices, preventing

• unauthorized operation. Electrical Panel Hole Lockout – Circular Yellow is also suitable for locking switches that are recessed inside a plane surface.

• The lockout can be easily rotated in any direction and has three holes on the bottom base for fixing it with screws or rivets.

• Alternatively, it can be installed using strong double-sided tapes.

• The lockout has an outer diameter of 46 mm, inner diameter of 32 mm, lower cover circle side wall thickness of 7 mm, overall thickness of 8 mm (with upper part thickness of 3 mm and lower part thickness of 5 mm), and a locking hole diameter of 1 mm.

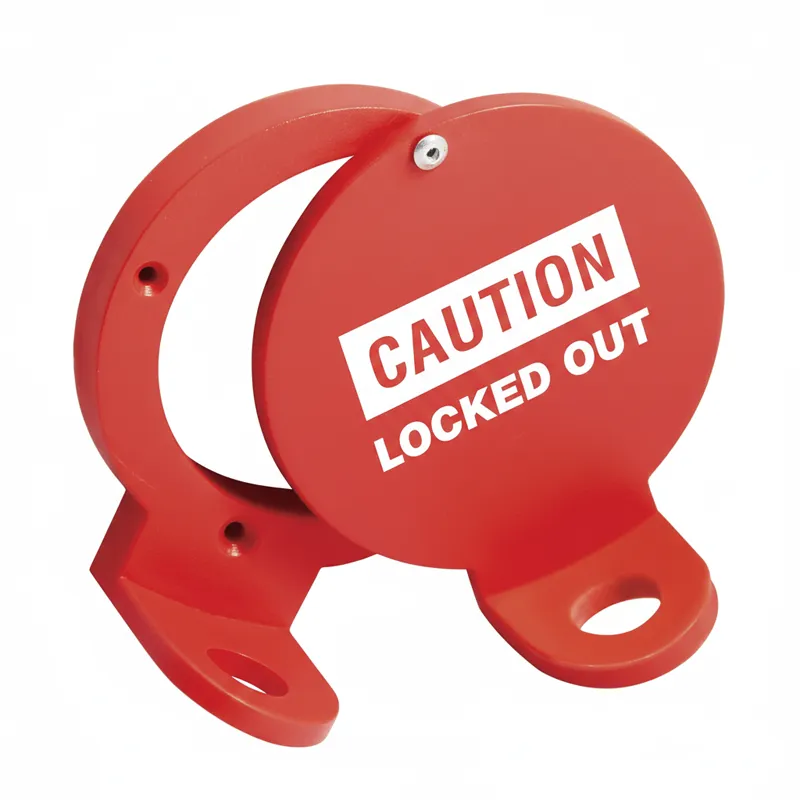

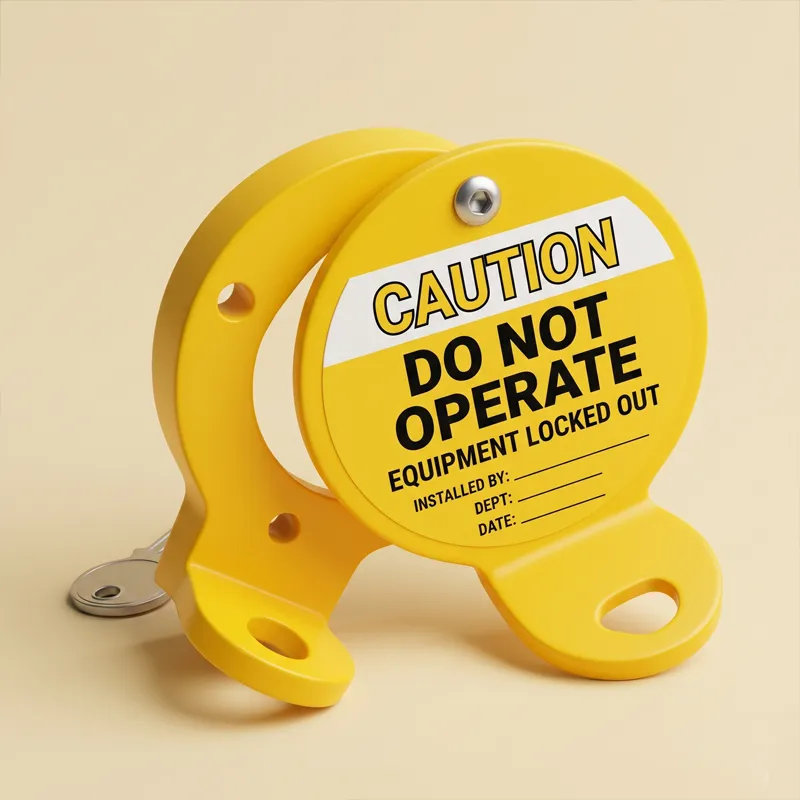

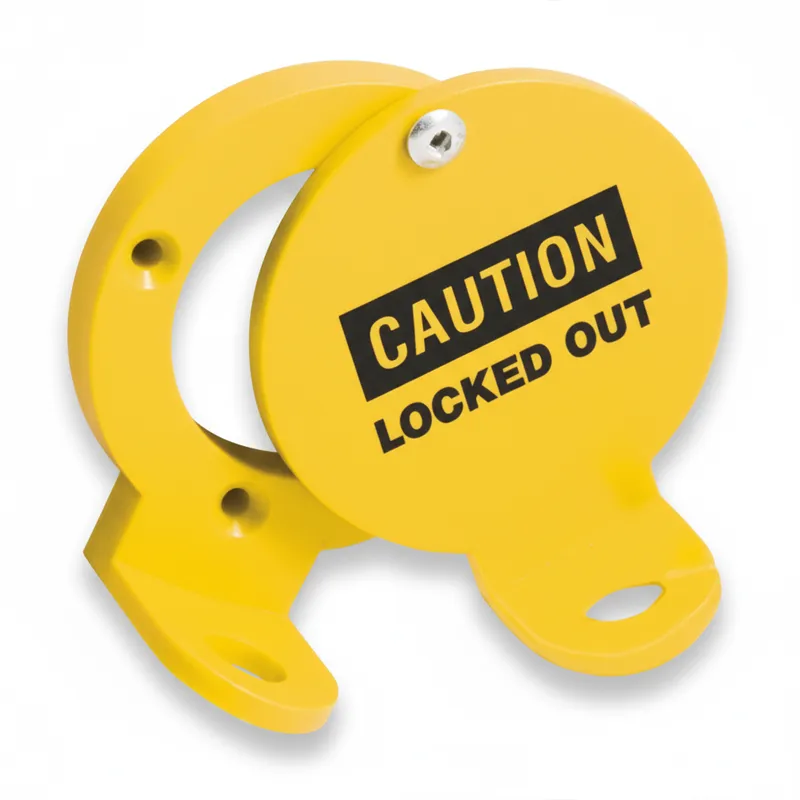

• Available in Red and Yellow colours.
