Medium & Small Ball Valve Lockout

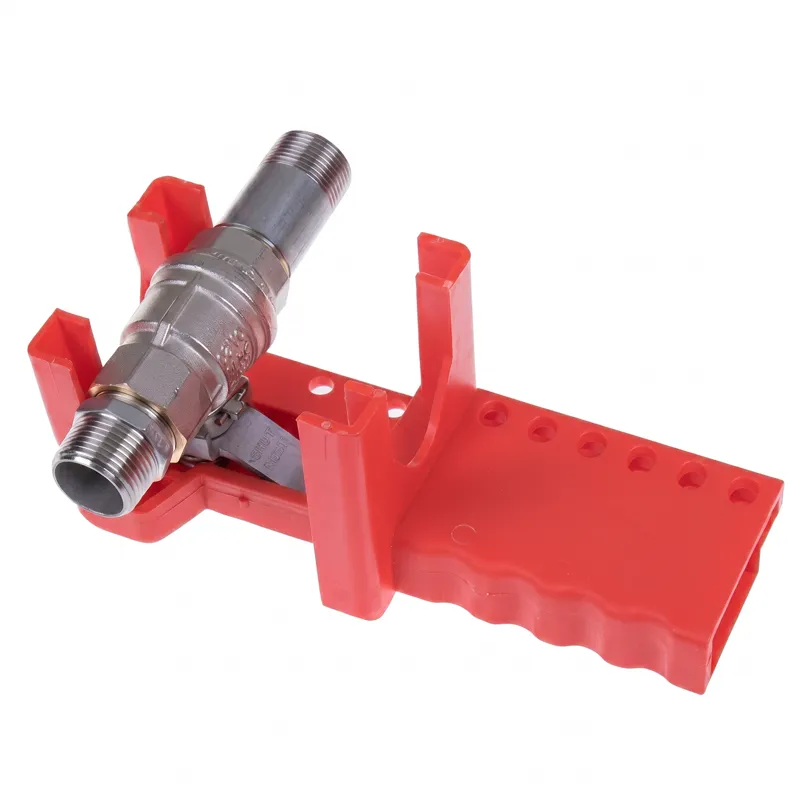

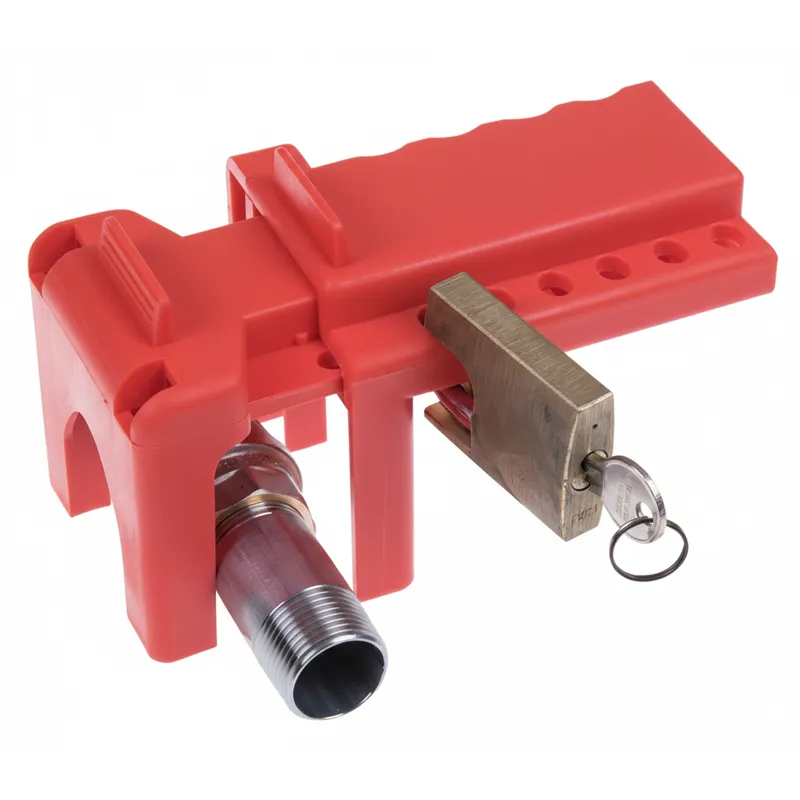

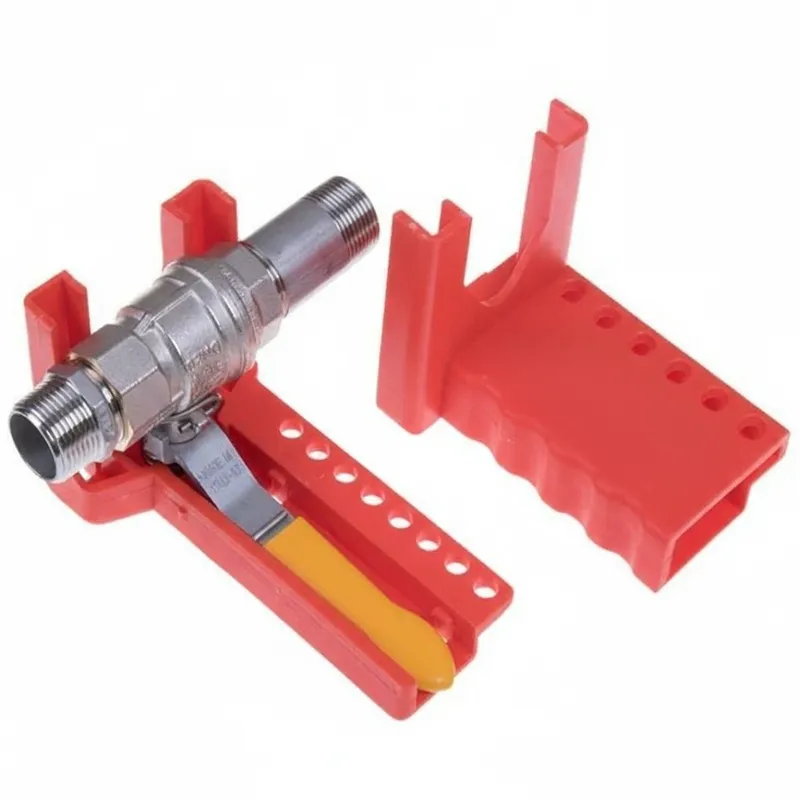

Our medium and small ball valve lockout devices come in different sizes to allow you to lockout/tagout ball valves of varying sizes. These lockout/tagout devices clamp over the valve lever to prevent unauthorised use and operation during maintenance, repair, and shutdown. Our small ball valve lockout device can lock the valves in both open and close states. However, the medium and large-sized ball valve lockout devices can only lock the valves when they are in the locked state. We offer these lockout devices in three sizes viz. small (9.5 mm to 31 mm), medium (38 to 63 mm), and large (50 to 203mm). As a result, you can choose the ones that are suitable according to the valve size that you want to keep restrained from use.

SKU: KLH-BVL Category:

Description

Product Description

  • Our medium and small ball valve lockout devices are engineered to lock valves of various sizes and types. Their versatile design lets you use them to lockout large levers as well.
  • Their rugged and durable construction keeps them in good condition for a long time. They can easily withstand the extreme temperatures and harsh industrial environments. Their chemical-resistant coating ensures that they do not deteriorate or rust due to humidity, moisture, and other external factors.
  • Our ball valve lockout devices are lightweight and can be easily transported from one place to another. It also enables the workers to use them easily and store them conveniently when not in use.
  • The bright red colour makes them visible from long distances.
  • These lockout devices are suitable for handles up to 8 inches or 203 mm long.
  • The clamp of these devices fix upon the butterfly lever and prevent them from getting squeezed.
  • Other mechanical devices such as T-handles and large levers can be secured easily by using these ball valve lockout devices.

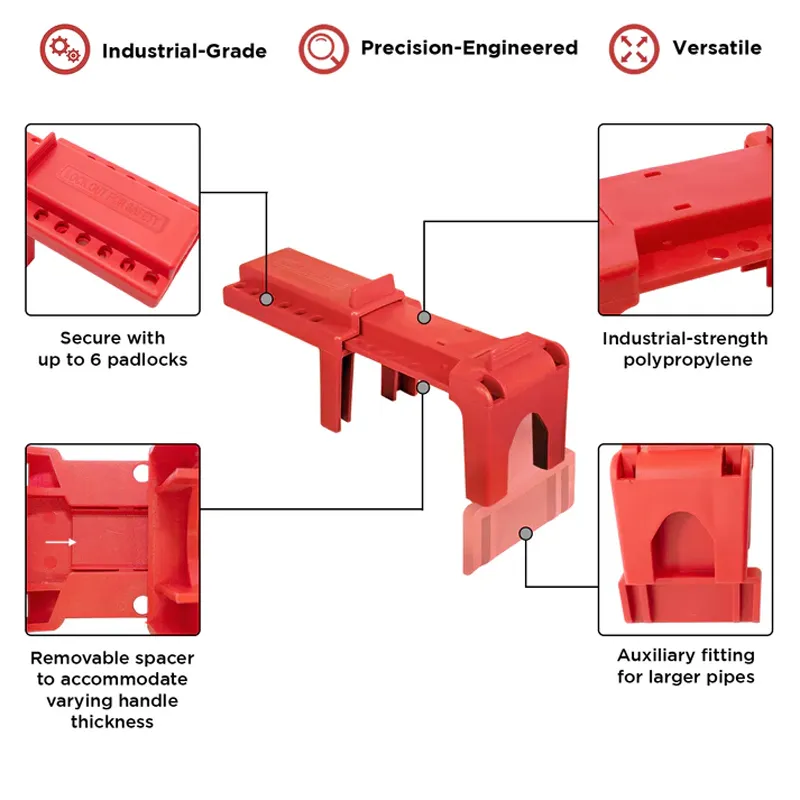

  • Different accessories can be integrated in these devices because of their modular design to make them compatible for different types of valves.

Features of Medium & Small Ball Valve Lockout

Key Characteristics
Product Number
Trade Name Large Ball Valve Lockout
Brand Name KLH
Dimensions(Medium)
Dimensions 8.66 in H x 12 in W x 4.65 in D
Height 8.6 in
Width 12 in
Depth 4.65 in
Valve Size Range 2 – 8 in
Dimensions(small)
Dimensions 4.07 in H x 5.29 in W x 3.05 in D
Height 4.07 in
Width 5.29 in
Depth 3.05 in
Valve Size Range 0.5 – 2.5 in
Material Characteristics
Material ABS
Color Red
Service Temperature Range °F 0 °F – 175 °F
Product Features
Application Lockout Tagout
Gate Valve Lockout Type Fits over Handle

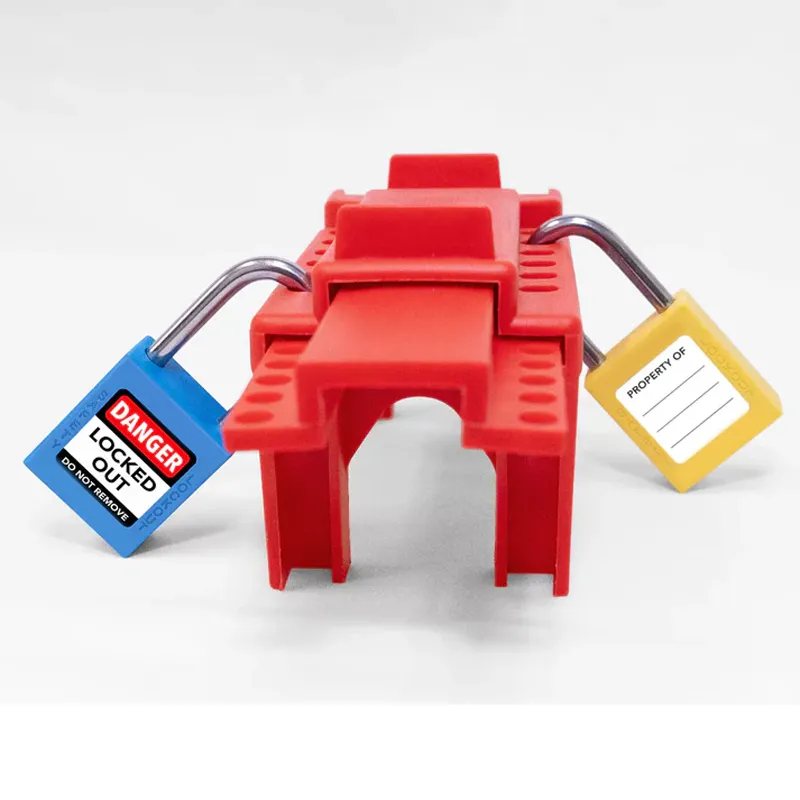

Maximum Number of Padlocks 4
Risk Type Mechanical Risk
Compatibility(medium)
Maximum Handle Thickness 1 in
Maximum Handle Width 1.75 in
Maximum Shackle Diameter 0.35 in

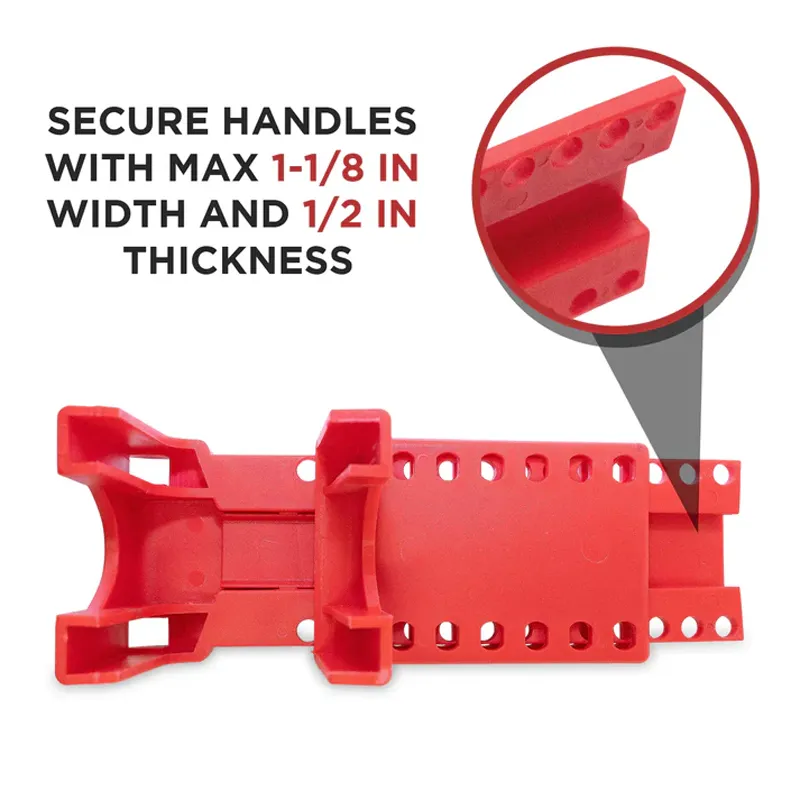

Compatibility(Small)
Maximum Handle Thickness 0.5 in
Maximum Handle Width 1 in
Maximum Shackle Diameter 0.35 in

Additional information

Valve Size

Medium, Small
