Gate Valve Lockout

Precision control of gases and liquids is critical in most industrial settings. Using gate valves to control them is a common phenomenon in the industries. However, these gate valves should be securely closed while maintaining, repairing, or cleaning them. This prevents accidental or unauthorized operation that could lead to severe injury, equipment damage, or environmental hazards.

Our Gate Valve Lockout handles wheels with a diameter ranging from 25mm to 330mm i.e. 1 inch to 10 inches. Useful as a safety device in several industries, it complies with Lockout/Tagout (LOTO) procedures. Its sturdy and shock-proof construction makes it durable and easy-to-use. Providing easy visibility to the workers from far away due to its bright colours, our Gate Valve Lockout becomes an integral part of the safety program of various industries.

SKU: N/A Category:

Description

Product Description

  • Our Gate Valve Lockout fixes a lock on the valve handle to prevent it from opening by accident. This keeps people and equipment safe by making sure there is no energy going to the valve.
  • The Gate Valve Lockout is made from materials that do not conduct electricity making it crucial for any industrial safety plan. It is made from a plastic called polypropylene that can withstand extreme temperatures and chemicals. The temperature resilience ranges from -20 degrees Celsius to 90-degree Celsius.
  • The Gate Valve Lockout has a design that covers the handle completely. This stops people from opening the valve by accident.
  • It helps companies follow Lockout/Tagout safety rules. It is easy to put on and take off the Gate Valve Lockout.
  • The Gate Valve Lockout can be locked with a padlock of a diameter up to 7mm to keep the valve closed and safe. It is also hasp-compatible. The lockout device comes in bright shades of red, green, or yellow so it can be seen from far away.

Features Of Gate Valve Lockout

Key Characteristics
Trade Name Gate Valve Lockout
Brand Name KLH
Dimensions

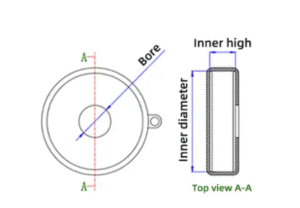

Gate Valve Lockout Dimensions
Model Inner Hole (mm) A Diameter (mm) Inner Height (mm) Hand Wheel Diameter (mm)
BD-No.2 19 70 28 25-64 (1″)
BD-No.4 44 130 35 64-127 (2.5″)
BD-No.6 62 170 42 127-155 (5″)
BD-No.8 88 205 60 155-230 (6″)
BD-No.10 105 355 60 230-330 (10″)
Material Characteristics
Material Thermoplastic Material
Color Red
Service Temperature Range 0°F – 175°F
Product Features
Application Lockout Tagout
Type Two-Piece Adjustable
Maximum Padlocks 1
Risk Type Mechanical Risk
Compatibility
Maximum Shackle Diameter 0.35 in

Additional information

Gate Ball Sizes

25-64MM, 64-127MM, 127-165MM, 165-254MM, 254-330MM
